RDE300i PV Module Measurement System

RDE300i product photo highlighting inline functionality with PV magazine balance of system award

Highlights:

  • RDE300i™ brings your PV system performance monitoring to a whole new level, allowing you to see inside your array with in-situ I-V data to automatically calculate PV module performance metrics.
  • Each RDE300i unit measures I-V data, including power (Pmax), current (Isc, Imp), and voltage (Voc, Vmp), on your attached PV module, either standalone or within your PV array.
  • For in-situ operation, RDE300i is wired in-line with your PV string and periodically performs I-V sweeps without affecting your inverter, eliminating the need for standalone reference modules.
  • Use RDE300i to automatically calculate PV reference module effective irradiance, such as total irradiance for bifacial systems, or to monitor maximum potential system output power.
  • By combining multiple RDE300i units and/or additional Atonometrics sensors via the included AUX port, you can automatically calculate PV module soiling ratios and other performance metrics.
  • RDE300i is designed to work with a wide range of PV module types, including crystalline or thin-film, bifacial or monofacial. It has a wide input range and can measure up to 30 A, 250 V, and 1500 W. It connects easily to your SCADA system, providing output data by Modbus RTU protocol over RS485.
  • Meets IEC 61724-1 requirements for soiling measurement
  • Awarded best BoS (Balance of System) sensor by PV Magazine Global

Outputs:

  • Power, current, and voltage
  • Soiling ratio
  • Performance ratio
  • I-V curves
  • Temperature

Applications:

  • Monitor real-time PV module performance & I-V data in your array
  • Determine soiling losses, including non-uniform soiling affecting module power output
  • Measure total effective irradiance with bifacial reference modules
  • Track module degradation

Need more information? See the following links:

Gallery:

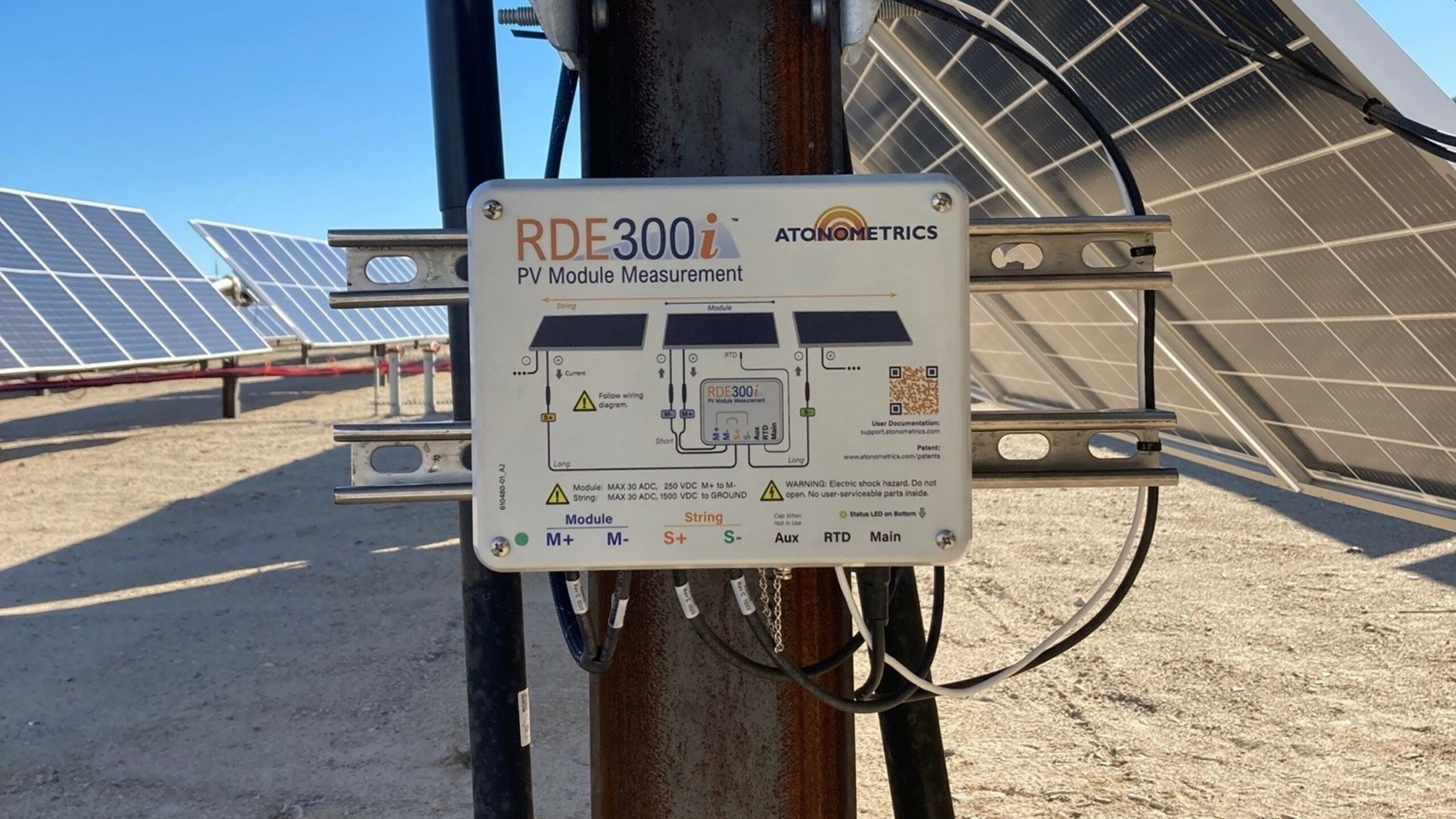

RDE300i Underneath Bifacial Modules
RDE300i Underneath Bifacial Modules
RDE300i Ready for Configuration

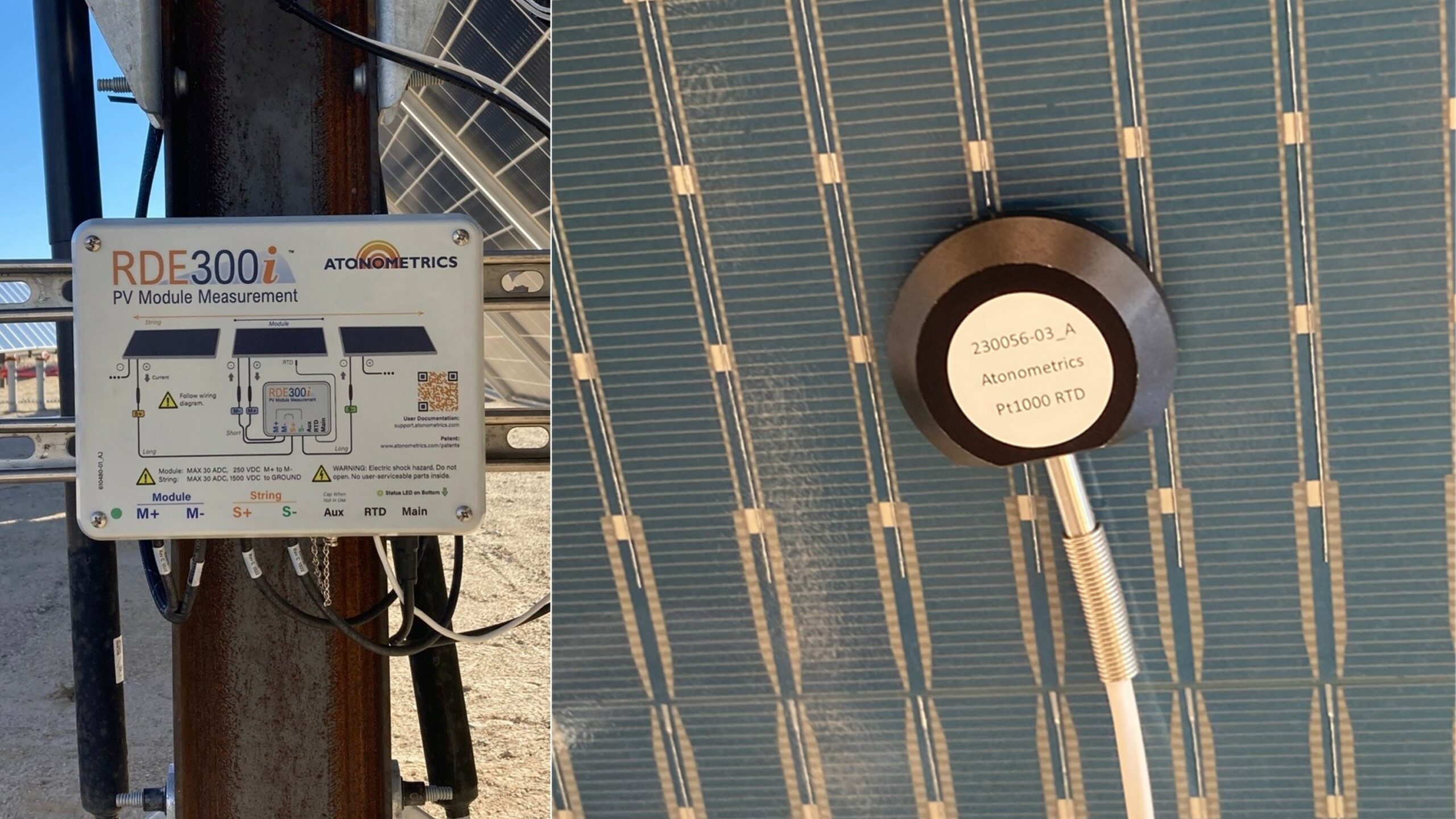

RDE300i Pt1000 Adhesive RTD

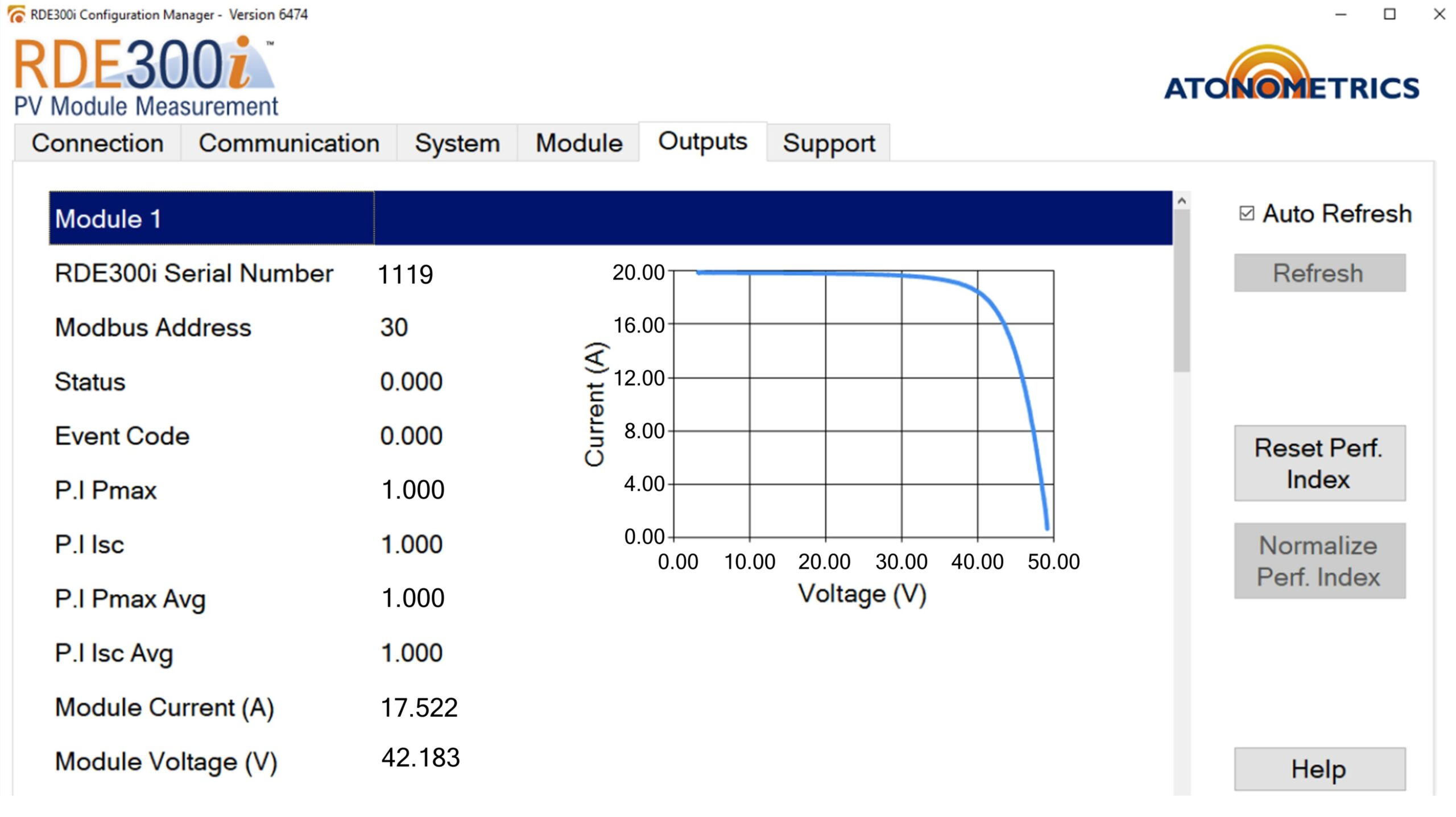

RDE300i Measuring IV Curve

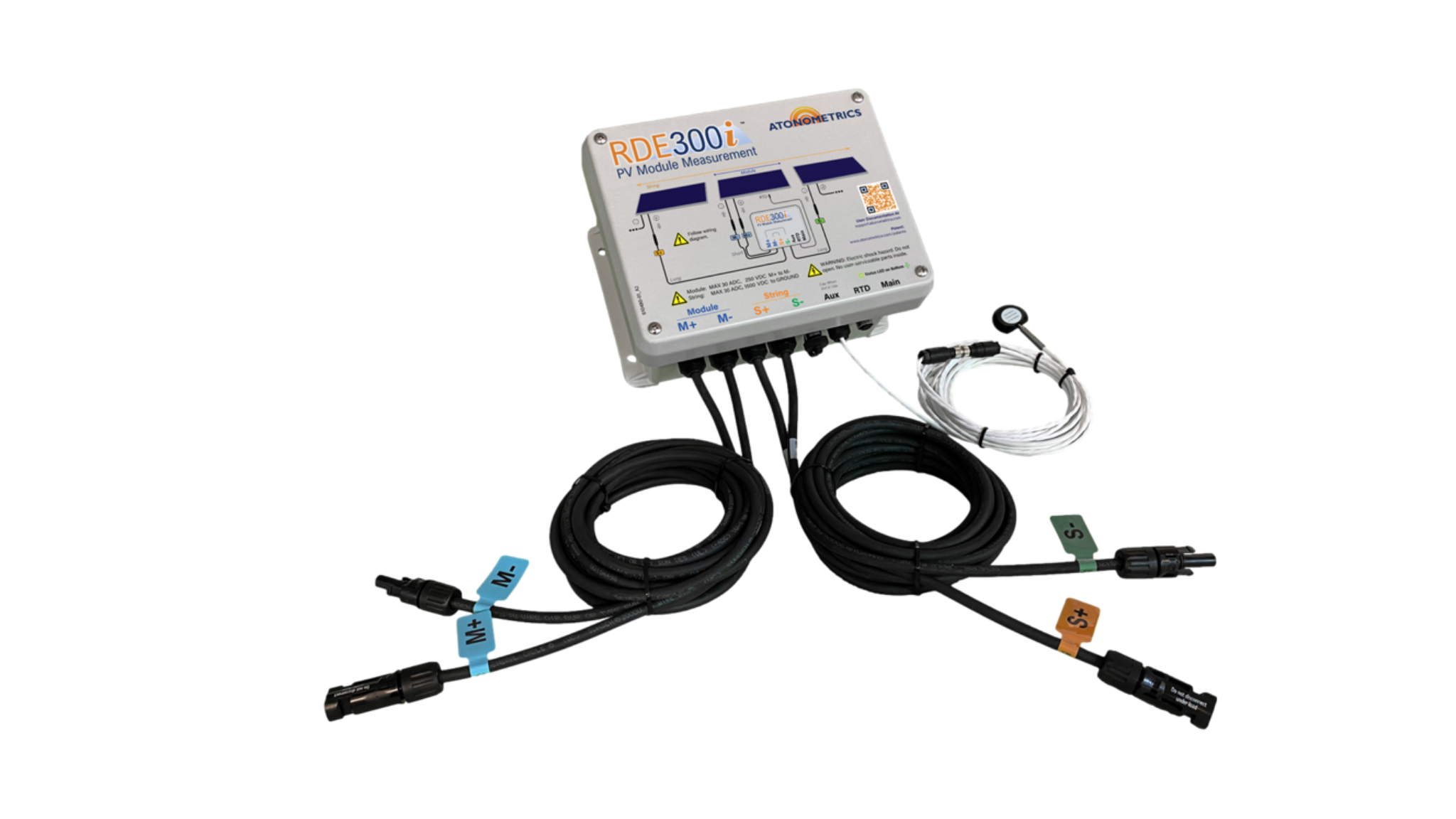

RDE300i Product Photo
RDE300i Gallery - 1

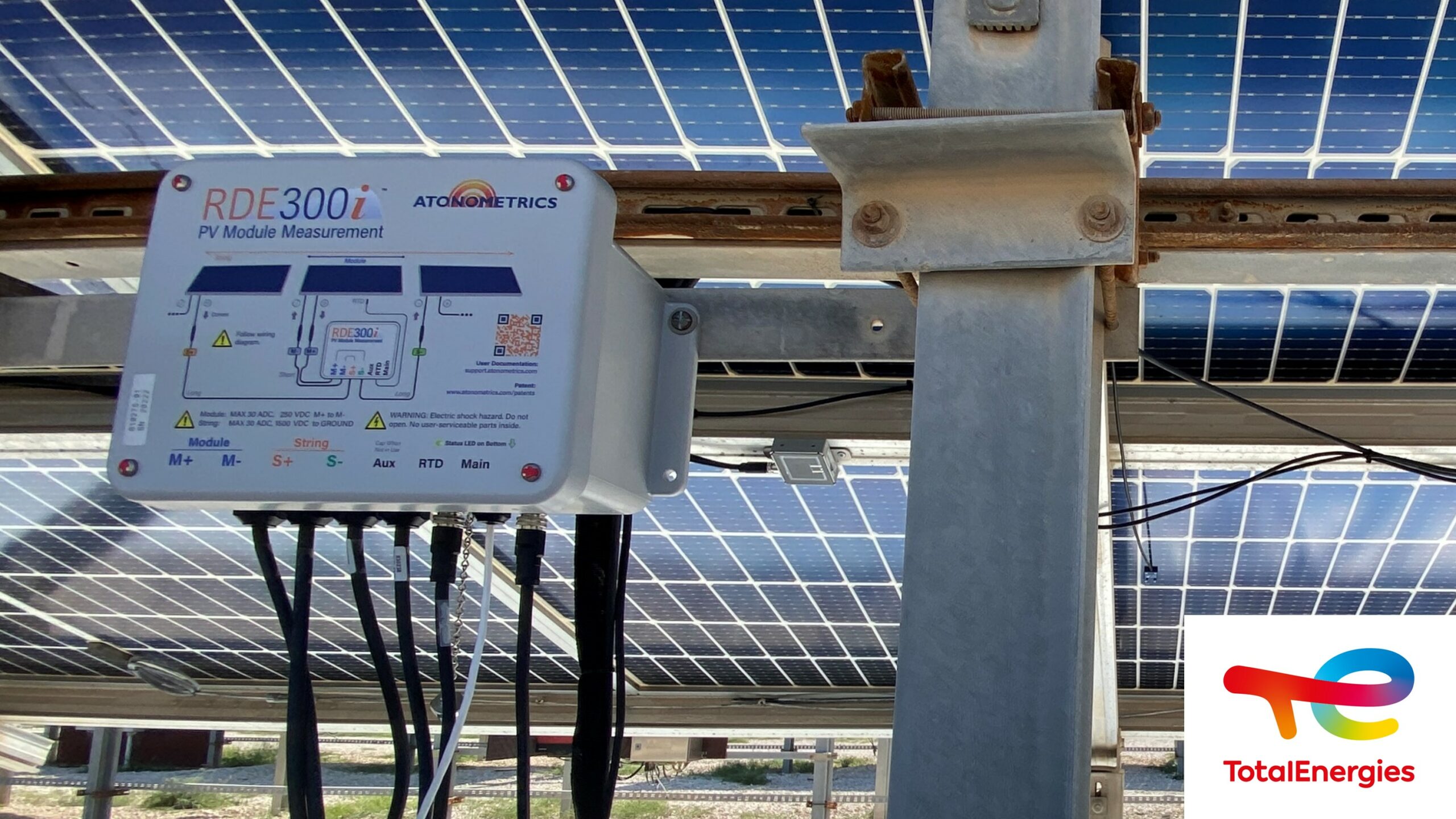

RDE300i Gallery Under Bifacial Fixed (Total)
