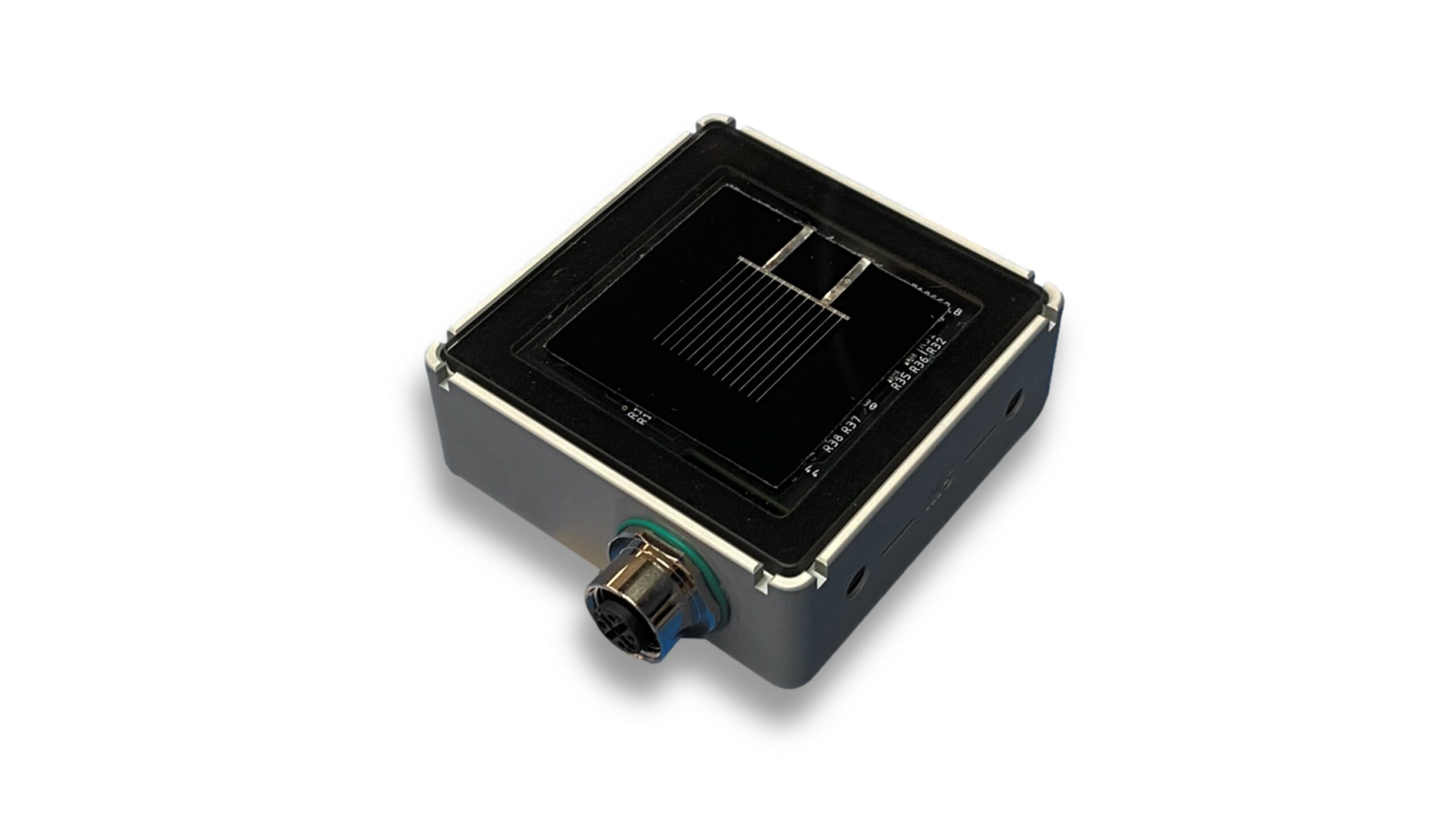

RC22 PV Reference Cell
Highlights:
- RC22 is the first PV reference cell specifically optimized for both bifacial and monofacial PV systems.

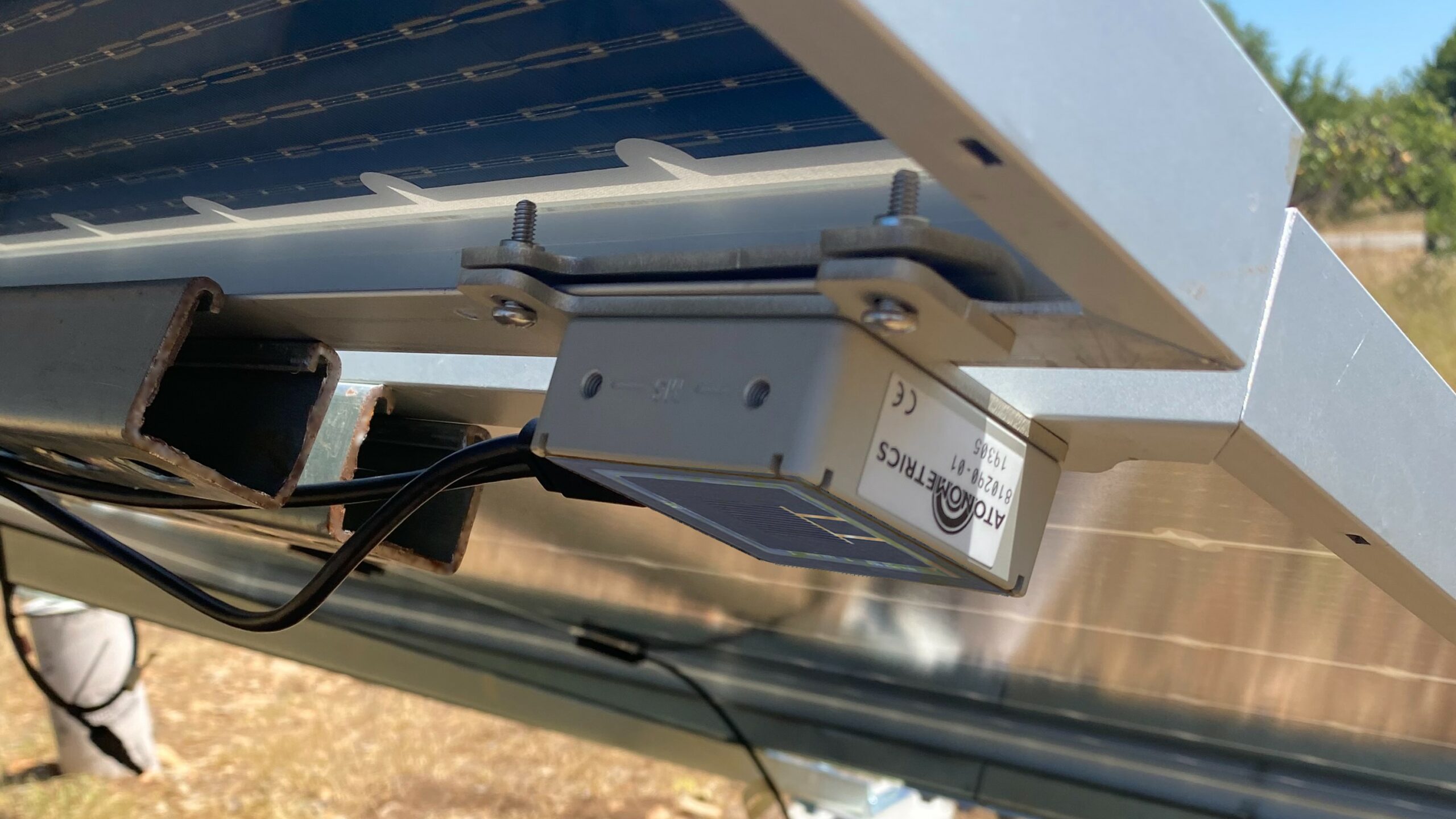

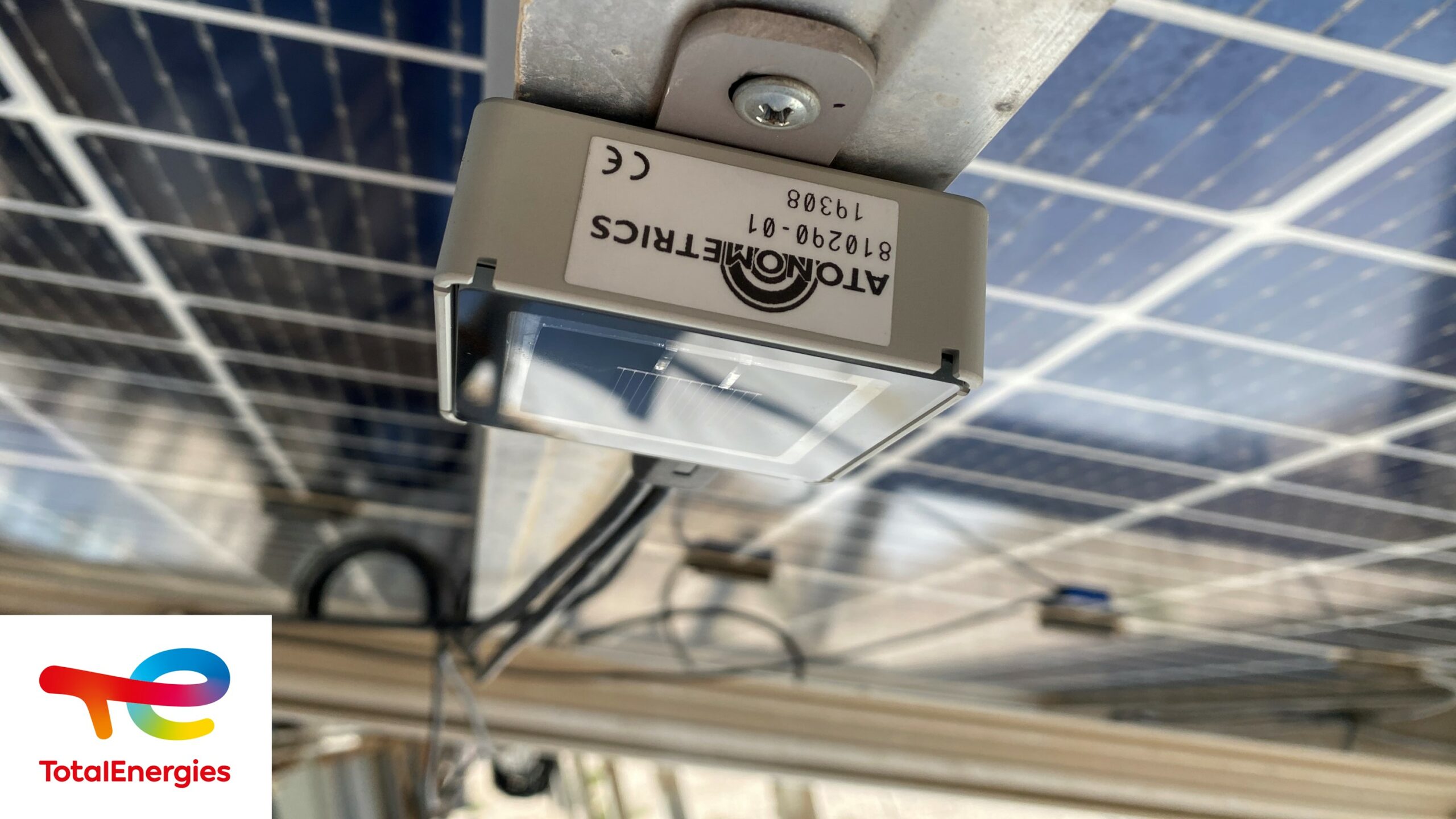

- The ultra compact design allows easy mounting anywhere, including on the rear side of your bifacial array.
- Wide-dynamic range, ultra-low zero offset, and dual calibration at both 1000 W/m2 (STC) and 135 W/m2 (BSTC) provide accurate measurements over the full range of irradiances seen by bifacial systems.

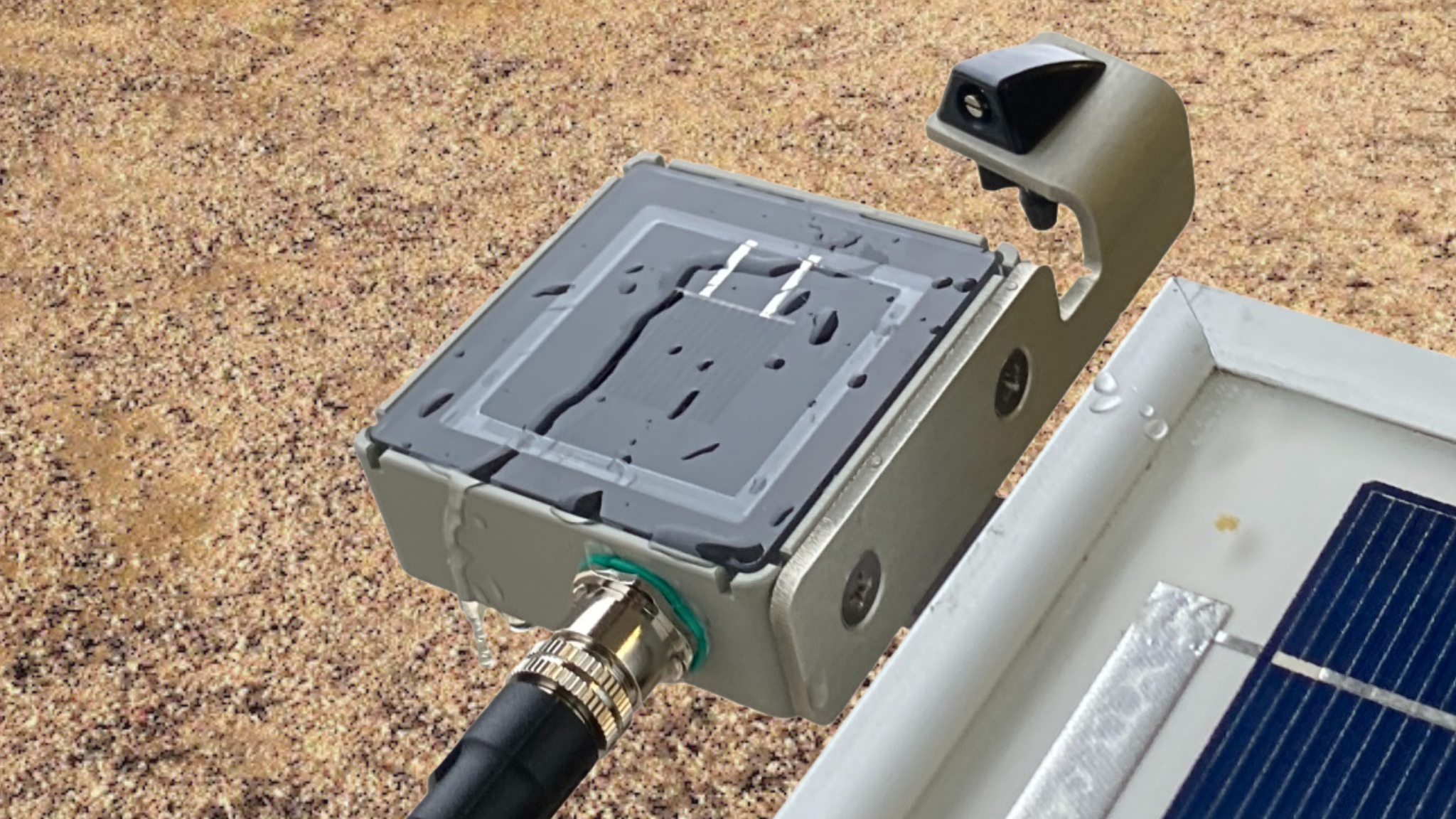

- The RC22’s unique glass-to-edge surface design eliminates excess soiling versus conventional reference cells.
- Integrated features support multiple mounting configurations for weather / meteorological stations.
- Communicates via Modbus RTU over RS485.
Outputs:
- Irradiance
- Cell short-circuit current
- Cell temperature
Applications:
- Measure high-accuracy solar irradiance for both monofacial and bifacial PV systems
- Measure irradiance to monitor solar performance ratio for operations and maintenance

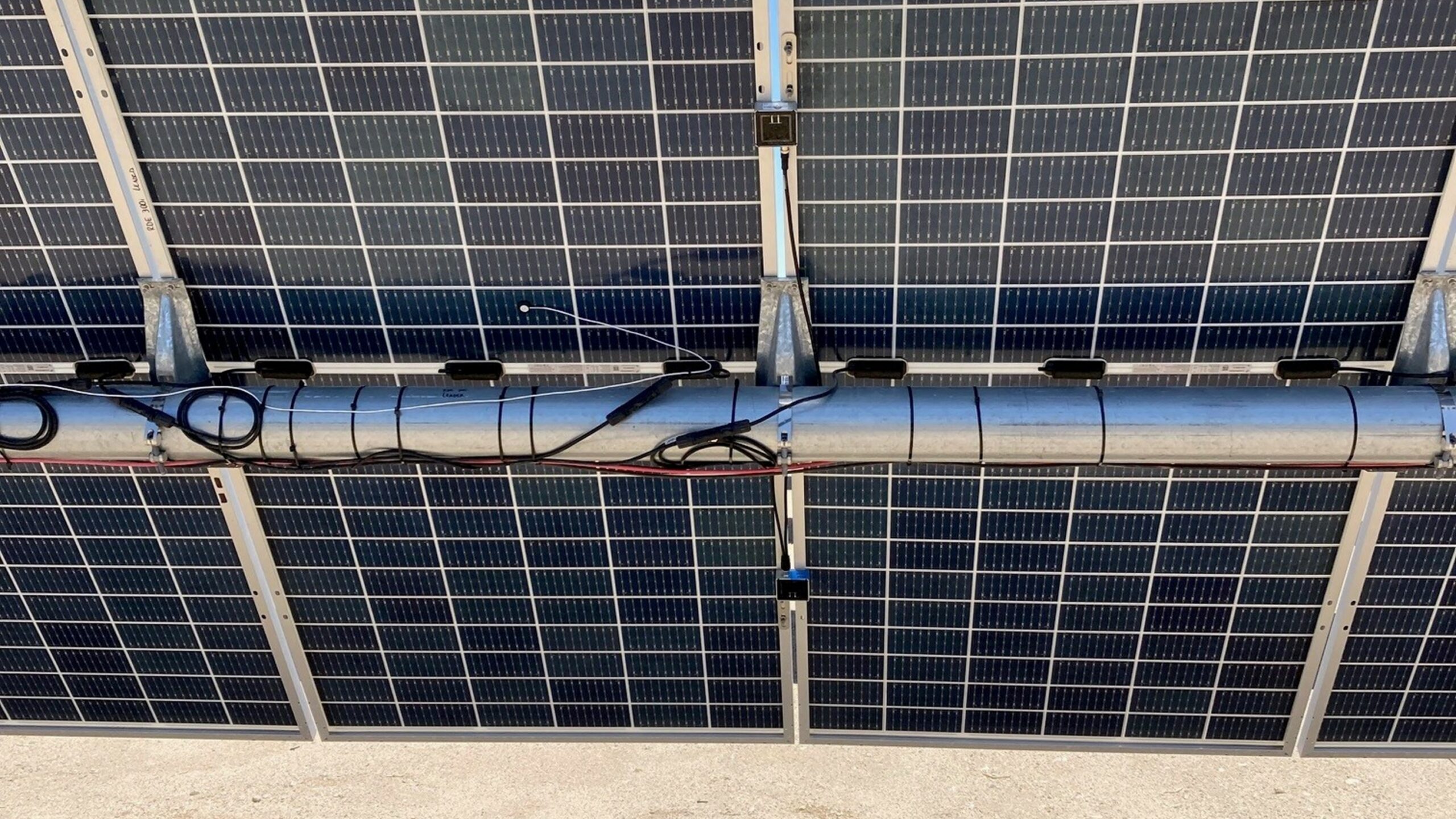

- Characterize irradiance uniformity on the rear side of bifacial arrays
- Collect prospecting data at pre-construction sites for solar resource assessment
